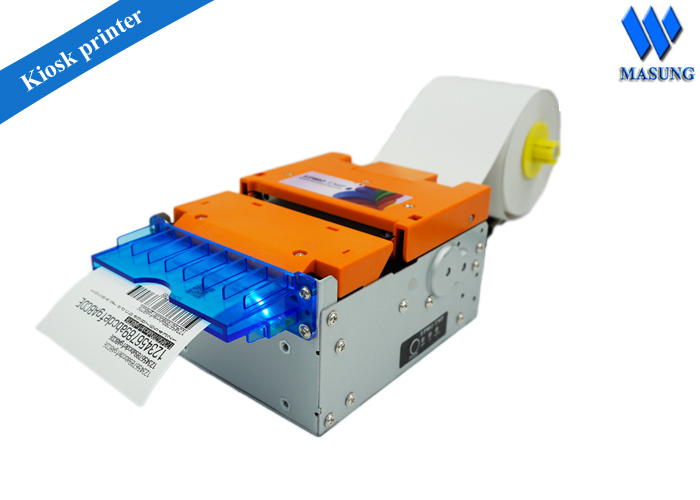

Brand name thermal head & auto cutter Kiosk thermal printer

Product Categories
Shenzhen Masung Technology Co. Ltd
Contact Now

Brand name thermal head & auto cutter Kiosk thermal printer

Brand Name : MASUNG

Model Number : W80

Certification : CE; ROSH

Place of Origin : China

MOQ : 1set

Price : USD300~400/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5,000 units/monthly

Packaging Details : carton and foam materials

Control board : EP802_3

Thermal printer head : Brand name: ROHM

Auto cutter : Brand name: OYANE

Printing method : Thermal dot line

Dots : 640dots

Speed : 250mm/s (max)

Printing width : 80mm (max)

Paper width : 60/80/82.5 mm

Paper thickness : 0.06~0.2 mm

Paper loading : Easy loading ( horizontal 180°)

Print head life : 100KM

Cutting method : Full

Contact Now

EP802-TMP

Sport betting & video lottery ticket printer

Features:

  • Brand name thermal head & auto cutter
  • Ultra Highly printing speed Max 250 mm/s
  • Variable length ticket presenter
  • Ticket retracting capability
  • Sturdy adjustable paper roll bracket (horizontal & vertical mounting)
  • Wide range paper thickness: from 0.06 ~ 0.2 mm
  • Bezel LED indication
  • Ideal for outdoor applications.

Specification:

Module EP802-TMP
Control board EP802_3
Thermal printer head Brand name: ROHM
Auto cutter Brand name: OYANE

Printing

 Printing method Thermal dot line
Dots 640dots
Speed 250mm/s (max)
Printing width 80mm (max)
Paper width 60/80/82.5 mm
Paper thickness 0.06~0.2 mm
Paper loading Easy loading ( horizontal 180°)
Cutting method Full
Print head life 100KM
Printing format inverse,underline,italic,bold

Cutter life

 60μm paper 1,000,000 cuts
200μm paper 500,000 cuts
Baud rate 9600,19200,38400,115200
Font ASCII 9*17,12*24
Chinese 24*24dots
Detection TPH temperature Temperature sensor
Mechanism open detection Micro switch
Paper presence detection Mechanical sensor
Ticket out detection
Paper near end detection Photo-interrupter
Black mark detection
Paper cutting detection
Paper retracting detection
Conditions Power supply DC24±10% V
Load current

1.5A continuous

61mA Standby

3.2 A Peak
Interfaces RS232,USB
Paper Paper type Thermal paper roll
Recommended paper type

KANZAN KF50

KP460

MITSUBISHIPG5075

TL4000
Environment operating temperature -10~60℃(no condensation)
operating humidity 20%~80%RH(40℃,85%RH)
Storage temperature -20~70℃(no condensation)
Storage humidity 10%~90%RH(50℃,90%RH)
Dimension Paper holder 45° upward ( 150mm paper roll) L*W*H=328*122.3*163 mm
Paper holder horizontal (150 mm paper roll) L*W*H=355*122.3*288 mm
Paper roll vertical (150 mm paper roll) L*W*H=196*122.3*288 mm
Weight Approx 1.49kg(without paper roll )

Application:

Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer and more

Brand name thermal head & auto cutter Kiosk thermal printer

Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
