Compact SDK USB RS232 Thermal Label Printer For Parking Mahcine

Product Categories

Shenzhen Masung Technology Co. Ltd

Contact Now

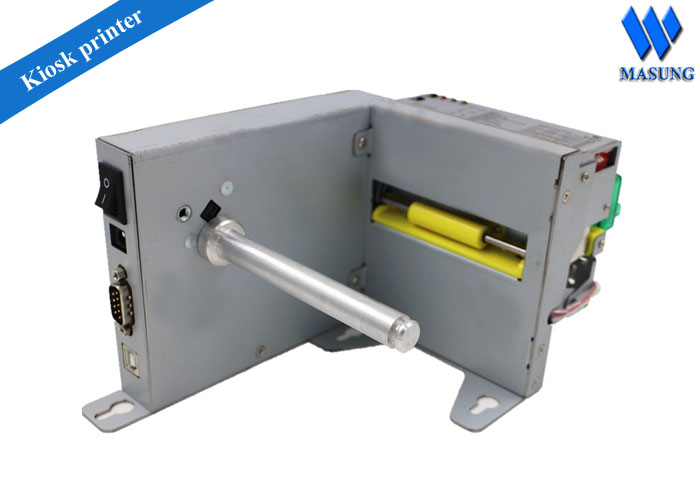

Compact SDK USB RS232 Thermal Label Printer For Parking Mahcine

Name: Compact SDK USB RS232 Thermal Label Printer For Parking Mahcine
Brand: MASUNG
Price: 1 USD

Compact SDK USB RS232 Thermal Label Printer For Parking Mahcine Manufactures

Brand Name : MASUNG

Model Number : MS-D347-TH

Certification : CE; ROSH

Place of Origin : China

MOQ : 1

Payment Terms : T/T/Paypal/Western union

Supply Ability : 2,000 units/monthly

Delivery Time : 5~8 days

Packaging Details : cartons and foam materials

Price : USD1~200/piece

Type : kiosk thermal printer

mechanism : CAPD347

Printing method : Thermal dot line printing

Paper width : 80 mm

Printing width : 72 mm

Paper thickness : 54~78 um

Printing speed : 170 mm/s

Paper feed direction : 180° horizontal

Paper loading : Easy loading

Dimension (L*W*H) : 119.45*96.13*80.60mm

Interface : RS-232 /USB/Parallel

Contact Now

Compact SDK USB RS232 Thermal Label Printer For Parking Mahcine

Competitive Advantage:

Brand-name printer parts
Customization offer
Prompt delivery
Small order accepted
Product performance
Green product

Quick Detail:

Brand printer mechanism CAPD347
Reliable auto cutter
Bezel LED indication
Big paper holding unit
Ultra high speed max200 mm/s
Windows/Android/Linux system support
Paper jam prevention support

Specification:

mechanism:			CAPD347
Printing method			Thermal dot line printing
Dots/line			576 dots/line
Dot pitch			8 dot/mm
Paper width			80 mm
Printing width			72 mm
Paper thickness			54~78 um
Printing speed			170 mm/s
Paper feed direction			180° horizontal
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Paper loading			Easy loading
Font size			ASCII:917;1224; Chinese: 24*24
Power supply		Logic circuit	4.75~5.25 V
		Motor	21.6~26.4 V
Dimension (LWH)			119.4596.1380.60mm
Weight			Approx 1.92 kg
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage temperature	10~90% RH

Controlling board:
Interface	RS-232 /USB/Parallel
power supply	DC 24V/2.5A
Command set	ESC/POS
Barcode	supported
Firmware location	512KB Flash memory
Buffer	32 KB
SRAM	64KB (extra)
Driver	Parallel/USB driver
System	WindowsXP/Win7(32bits or 64 bits)/ Win8/Android/Linux OS
Accessories:	Sensors	paper near end sensor;
		paper jam sensor;
		dragging paper sensor;
	Paper holding unit
	Paper guide mouth
	Interface connector
	Power supply unit
	Cable

Application:

Self-service terminal; ATM; parking system; payment kiosk; coupon machine; ticket vendor; inquiry machine; multimedia kiosk; gas station terminal; advertising displayer and more
