RS232 Auto Paper Loading Thermal Ticket Printer , 80mm Kiosk Printing Machine W80

Product Categories
Shenzhen Masung Technology Co. Ltd
Contact Now

RS232 Auto Paper Loading Thermal Ticket Printer , 80mm Kiosk Printing Machine W80

  • 1
  • 2
  • 3

Brand Name : MASUNG

Model Number : W80

Certification : CE/ROHS/FCC/CCC

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 2,500 units/monthly

Packaging Details : carton and foam materials

Printing method : thermal dot line printing

Paper width : 82.5/80/60 mm

Cutting method : Full/partial

Paper thickness : 0.06~0.2 mm

Speed : 250mm/s

Print head life : Over 100KM

operating temperature : -10~60℃(no condensation)

Interfaces : USB /RS232

Resolution : 576 dots/line

Power supply : 24V±10%

Auto cutter : Full cut＆Partial cut

Operating system : Wins, Android, Linux, Rpi

Paper type : Thermal paper type

Weight : About 1.2KG without paper roll

Contact Now

Easy Use RS232 Auto Paper Loading Ticket Printer 80mm Kiosk Thermall Printer W80

Overview

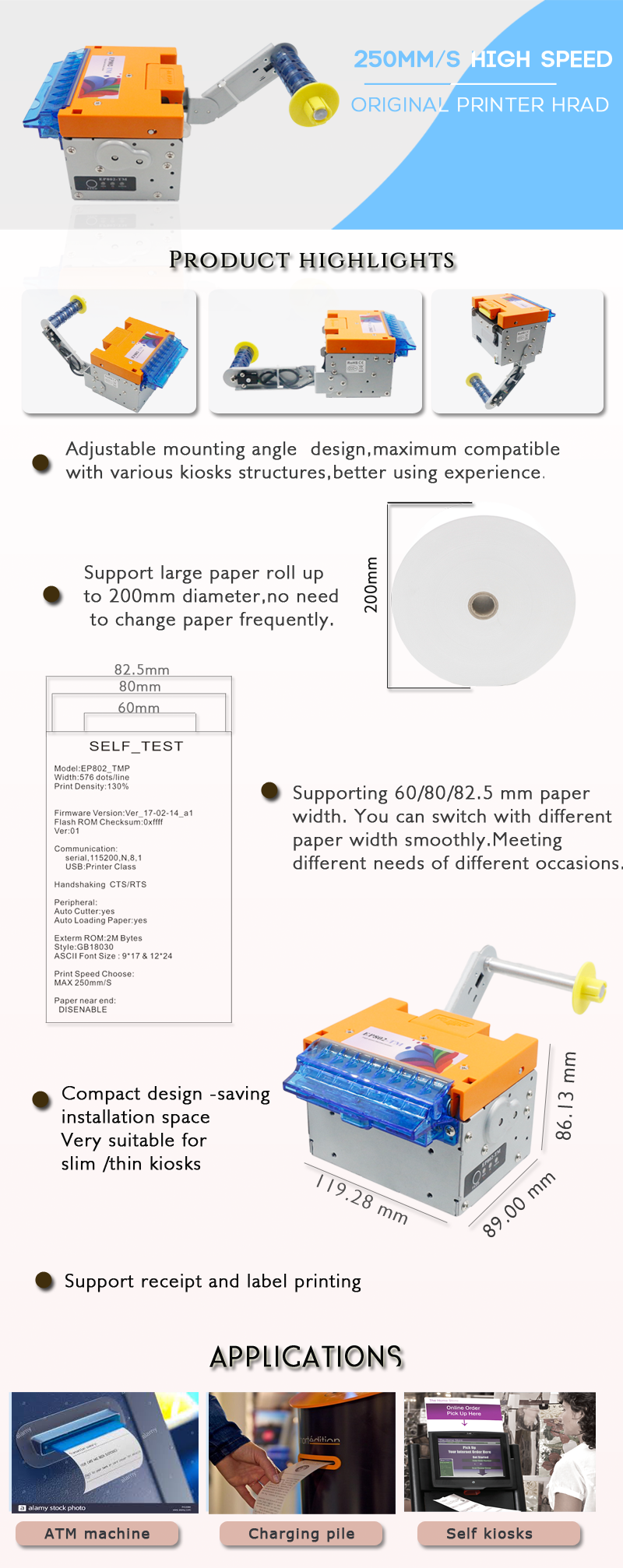

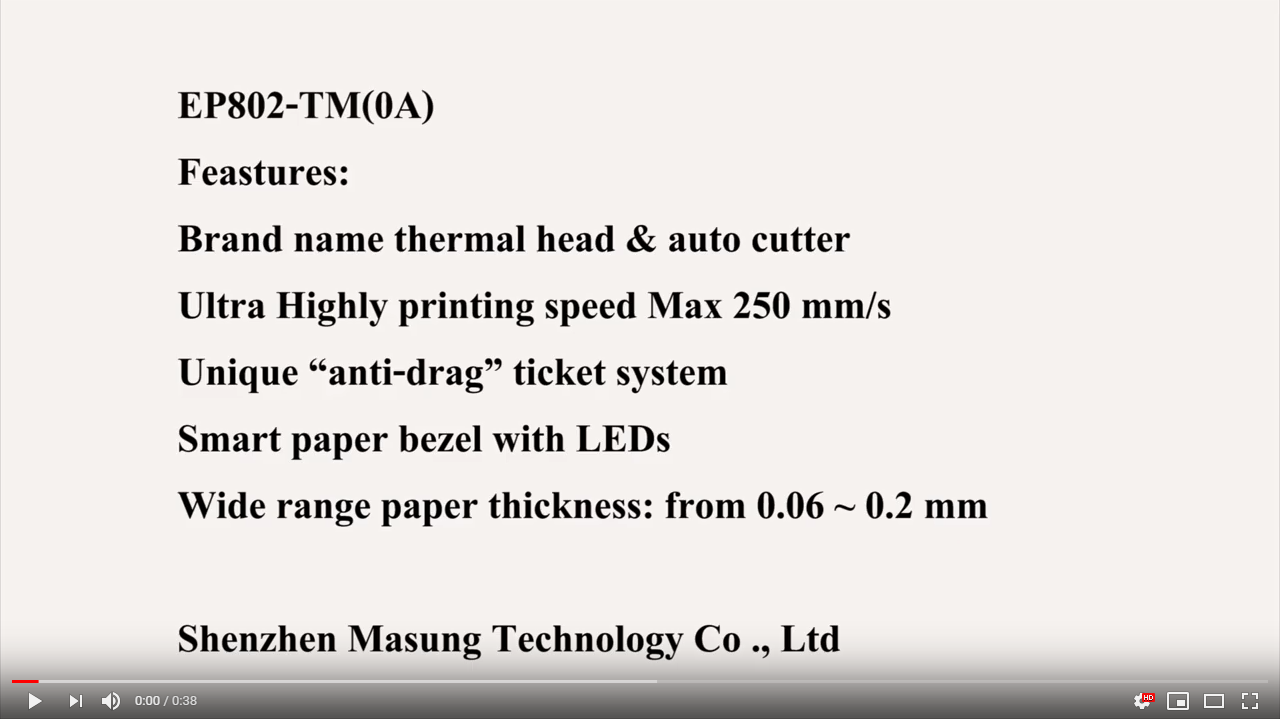

Features of kiosk thermal printer
Wide range paper thickness: from 0.06 ~ 0.2 mm
Brand name thermal head & auto cutter
Ultra Highly printing speed Max 250 mm/s

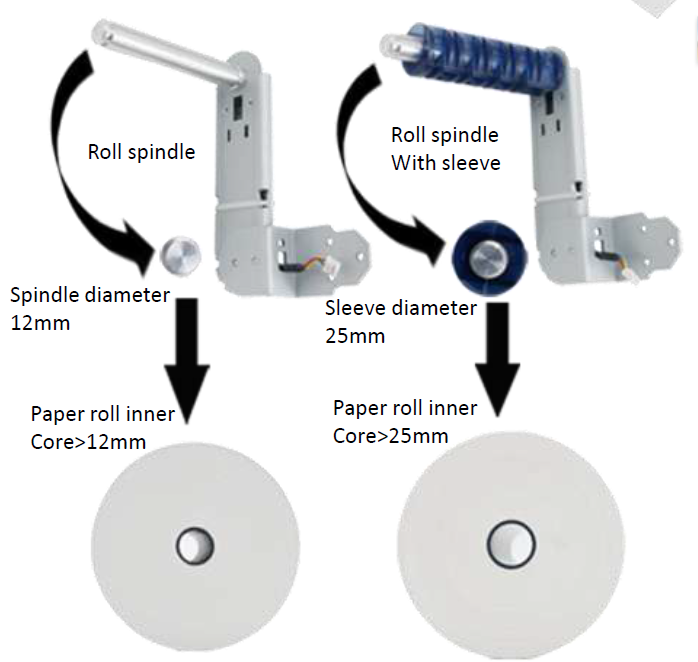

Support vertical paper loading up to 200 mm diameter .

The W80 integrated ROHM printer head, which is compact and easy to install and maintain.

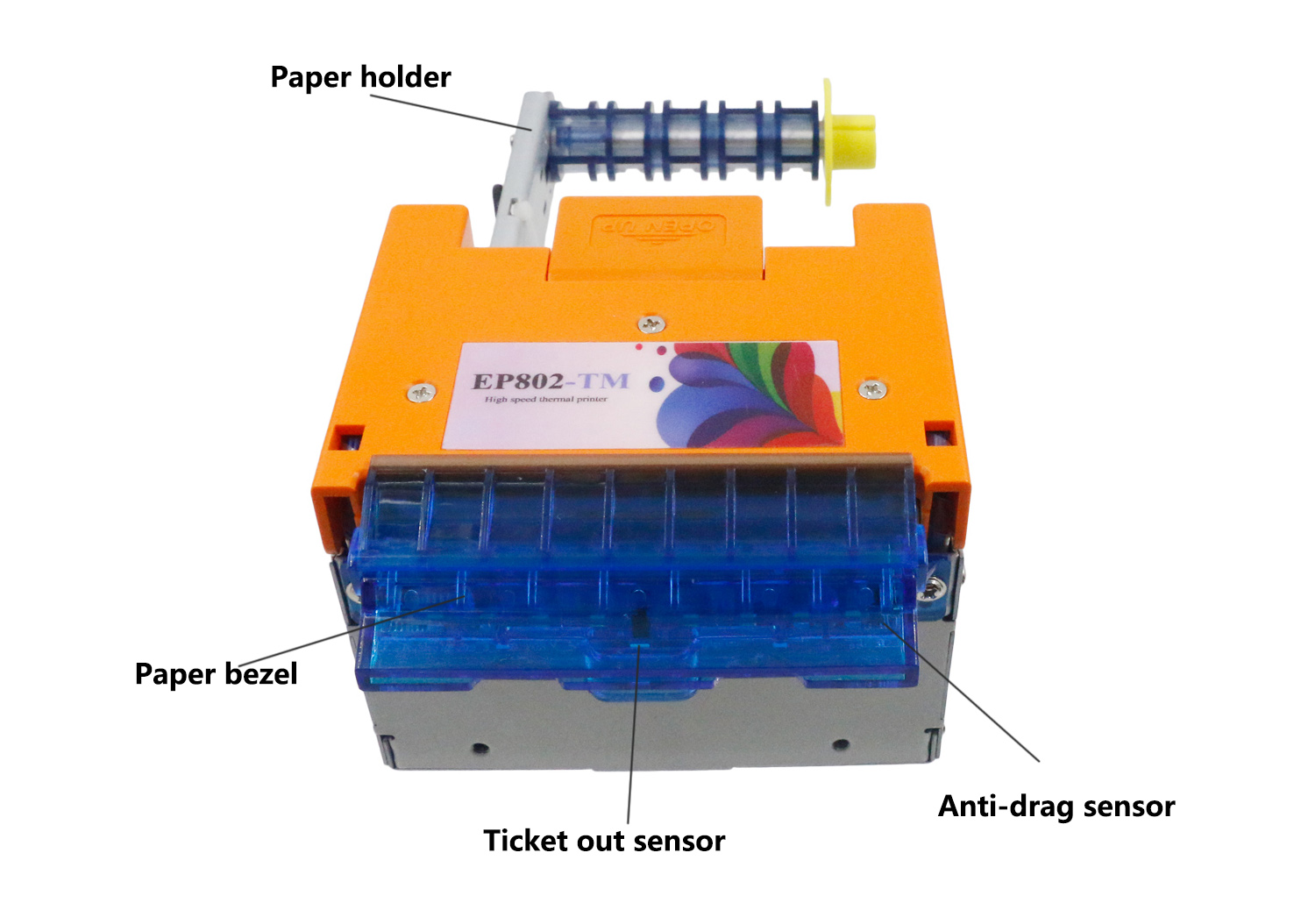

Multiple LEDs detection system make it easy using for customers.
Specification of kiosk thermal printer

Control boardEP802_3
Thermal printer headBrand name: ROHM
Auto cutterBrand name: OYANE



Printing

Printing methodThermal dot line
Dots640dots
Speed250mm/s (max)
Printing width80mm (max)
Paper width80/82.5 mm
Paper thickness0.06~0.2 mm
Paper loadingEasy loading ( horizontal 180°)
Cutting methodFull/partial
Print head lifeOver 100KM
Printing formatinverse,underline,italic,bold
Baud rate9600,19200,38400,115200
FontASCII9*17,12*24
Chinese24*24dots
DetectionTPH temperatureTemperature sensor
Mechanism open detectionMicro switch
“anti-drag ticket detectionMechanical sensor
Paper blocked detection
Paper near end detectionPhoto-interrupter
Black mark detection
Paper cutting detection
Paper presence detection
ConditionsPower supplyDC24±10% V
Load current

1.5A continuous
61mA Standby
3.2 A Peak

InterfacesRS232,USB
PaperPaper typeThermal paper roll
Recommended paper type

KANZAN KF50
KP460
MITSUBISHIPG5075
TL4000

Environmentoperating temperature-10~60℃(no condensation)
operating humidity20%~80%RH(40℃,85%RH)
Storage temperature-20~70℃(no condensation)
Storage humidity10%~90%RH(50℃,90%RH)
DimensionPaper holder 45° upward ( 150mm paper roll)L*W*H=219.5*119.30*87.3mm
Paper holder horizontal (150 mm paper roll)L*W*H=294.5*119.30*87.5mm
Paper roll vertical (150 mm paper roll)L*W*H=154.2*119.30*258.6mm
WeightApprox 1.45kg (without paper roll )



RS232 Auto Paper Loading Thermal Ticket Printer , 80mm Kiosk Printing Machine W80



RS232 Auto Paper Loading Thermal Ticket Printer , 80mm Kiosk Printing Machine W80
RS232 Auto Paper Loading Thermal Ticket Printer , 80mm Kiosk Printing Machine W80
RS232 Auto Paper Loading Thermal Ticket Printer , 80mm Kiosk Printing Machine W80

We highly welcome your inquiry, please feel free to contact me.
Name: Jolly Pong
Mail＆Skype: sales02@masungtek.com
Whatsapp: +86 15882275091
